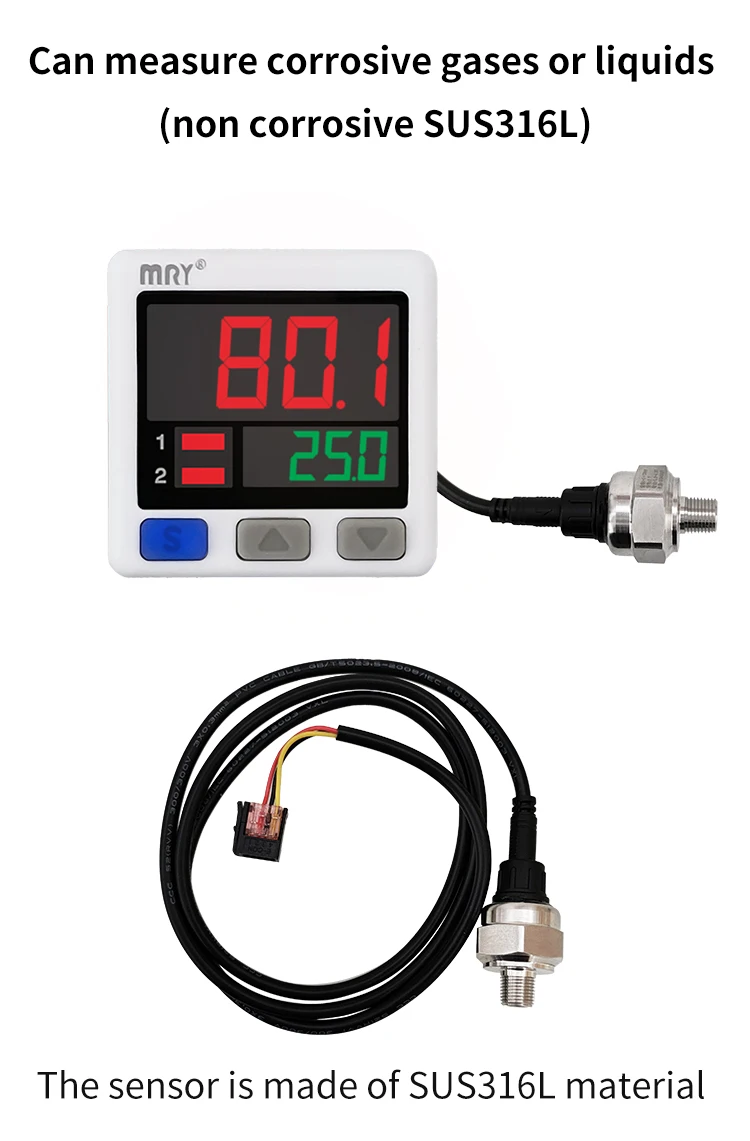

MKV series pressure switch supports analog output of 1-5V/4-20mA pressure gauge

MKV series pressure switch supports analog output of 1-5V/4-20mA pressure gauge

Advantages：
1. More functions,stronger performance
2. 2 way pressure switch outputs +1 analog output，Meet the needs ofmultiple scenarios
3. 1 RS485 communication, supporting remote monitoring and control

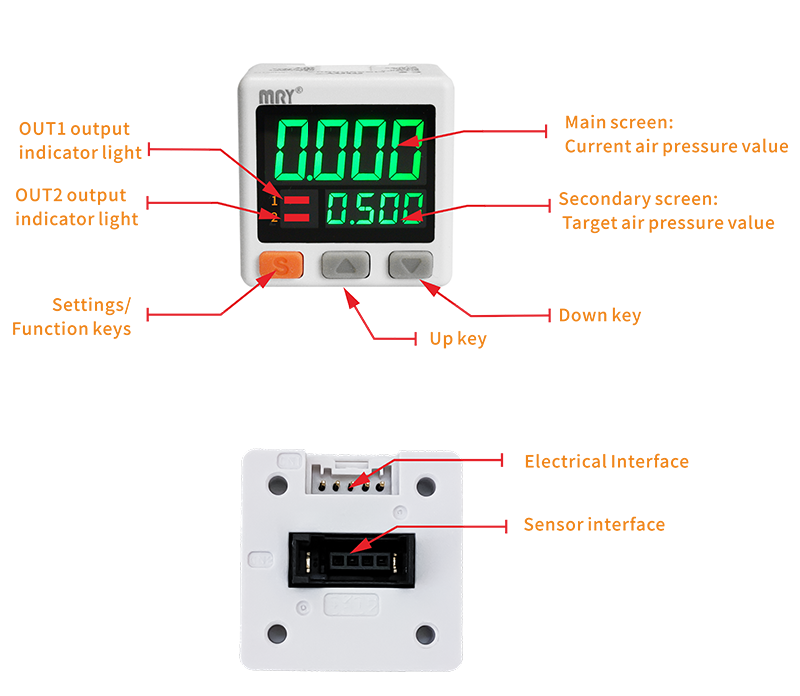

4. 2-Screen&3-Color display, superior visibility &usability
Support unit switching: MPa, kPa, KGF, bar, PSI, mmHg, inHg (slightly different for different models)

pressure switch,pressure gauge

Product Name		Pressure Switch/Gauge

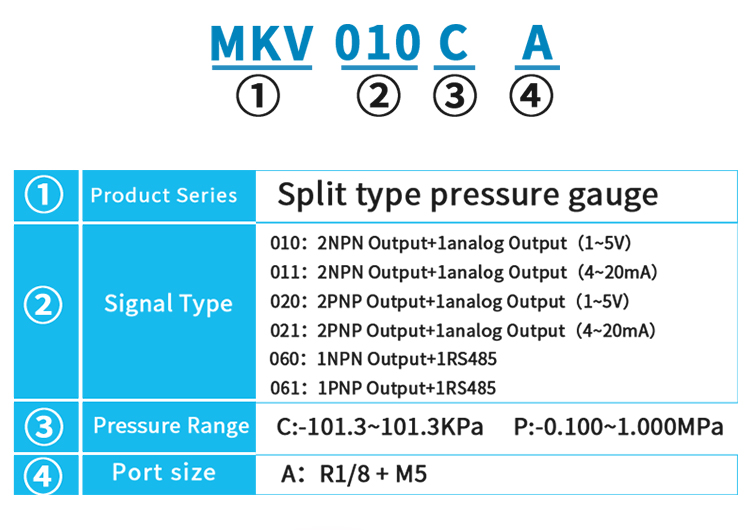

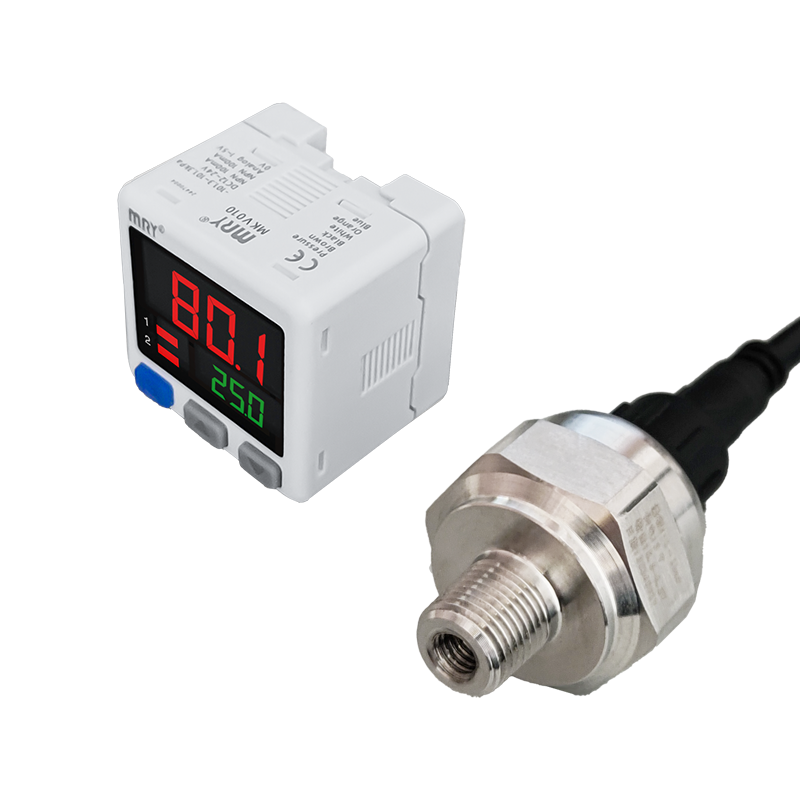

Product Series		MKV:Split type pressure gauge
Pressure Range		Low pressure	High pressure
		-101.3~101.3kPa	-0.101~1.000MPa
Withstang Pressure		500kPa	1.5MPa
Power Supply		12~24V DC±10%
Applicable Fluid		Gases y líquidos inflamables no corrosivos
Current Consumption		≤45mA（With no load）
Set Pressure Resolution	kPa	0.1	1
	mpa	_	0.001
	kgf	0.001	0.01
	bar	0.001	0.01
	psi	0.01	0.1
	mmHg	0.1	_
	inchHg	1	_

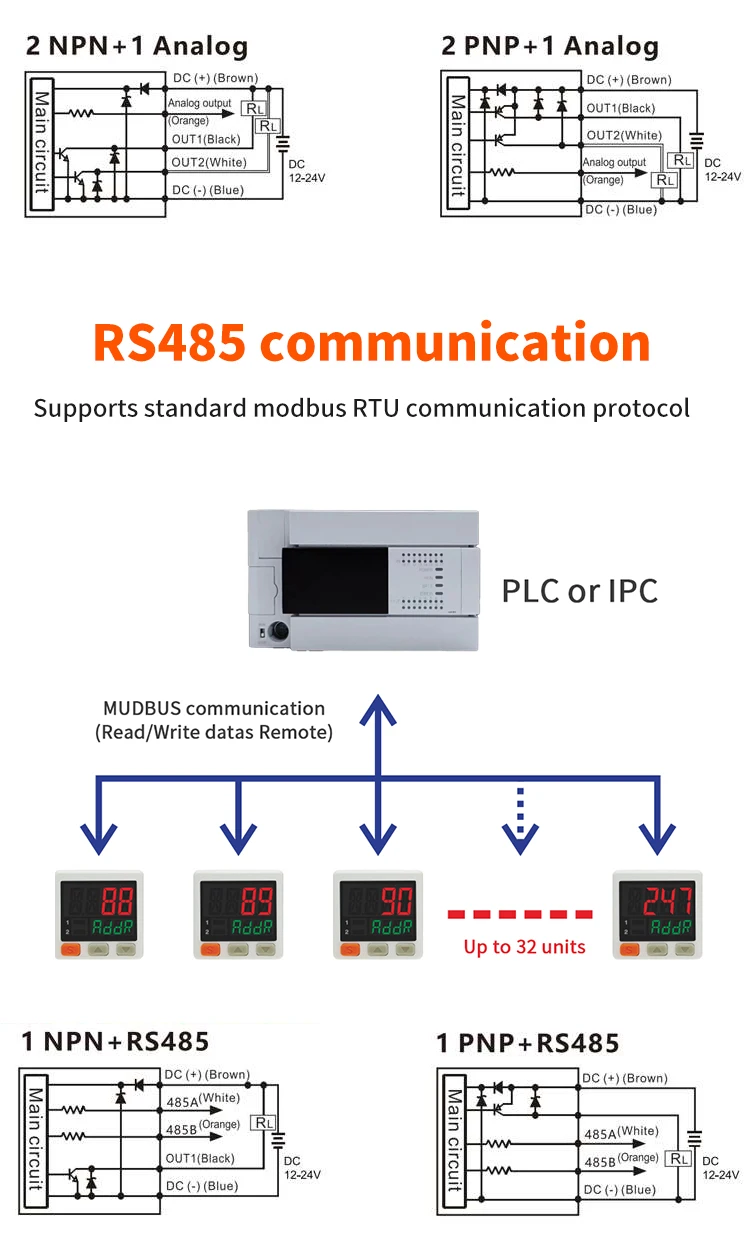

Switch Output		NPN:open Collector Max.load：100mA Max.supply Voltage：30V DC Residual Voltage：≤1.5V	PNP:open Collector Max.load：100mA Max.supply Voltage：24V DC Residual Voltage:≤1.5V

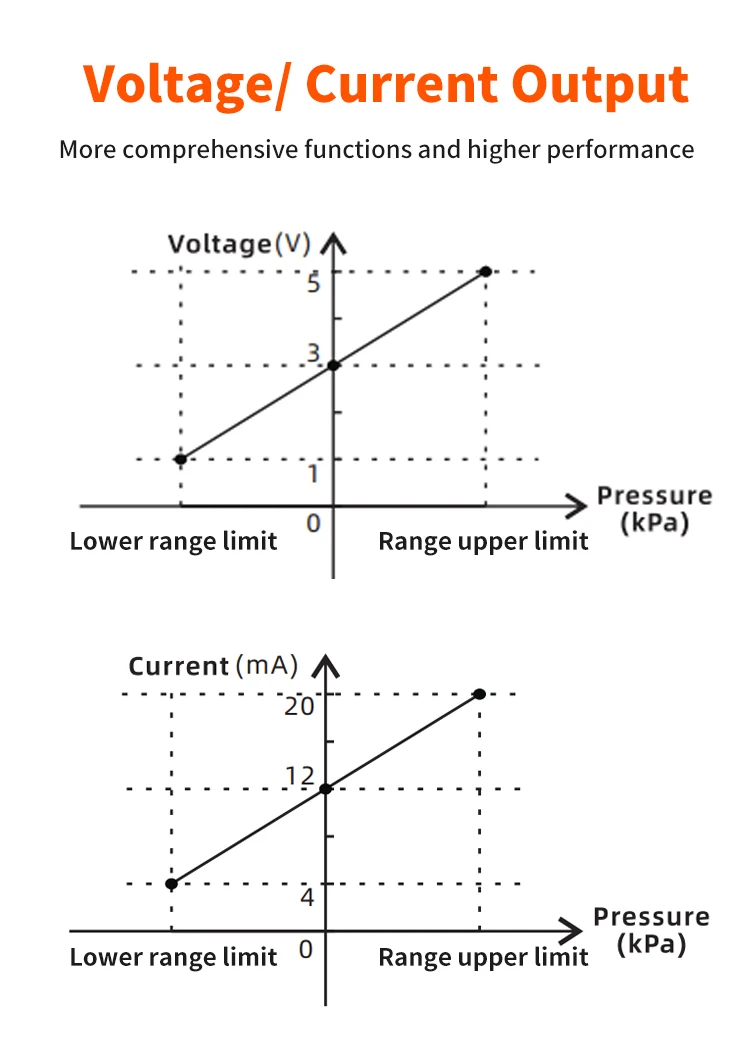

Analog Output		Voltage Output： Output Voltage:1~5v ±2.0%F.S. Linearity±1%F.S. Output Impendance:about 1KΩ	Current Output： Output Voltage:1~5v ±2.0%F.S. Linearity±1%F.S. Output Impendance:Min 50 Ω & Max:600 Ω
		Note: Only MS31 series have analog output function.
Indicator Accuracy		±1%F.S. ±1digits(Ambient temperature 25±10 ℃)
Repeatability		±0.2%F.S ±2digits
RS485 communication		Compatible con modbus rtu (opcional)
LCD Display		3 Color (Red/Green/Orange) Display (Sampling Rate:4 Times/1sec.
Protection Level		IP40(IEC)
Pressure Port		A,R1/8+M5

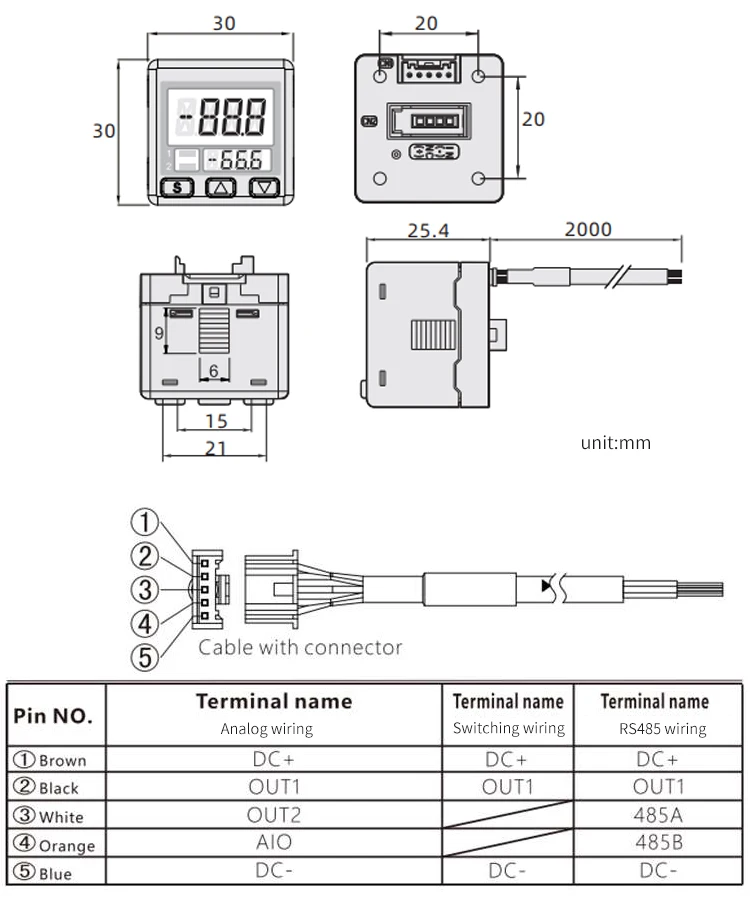

Weight		Approximate 67g(With lead wrie)
Accessories		A cable with connertor & an instruction manual
